CorrBox Solution evo

The packaging industry is under pressure on all sides to make changes. For you as a manufacturer, this means facing new challenges every day in production and product development.
Our CorrBox Solution meets tomorrow’s demands in the industry today!

CorrBox Solution is a complete modular system. You can upgrade your system on every time, when your demands are growing.

CorrBox Solution evo components

PX 1000 Multiple head

CS 1000 Detection sensor

PGD 1000 Detection sensor

Xtend³

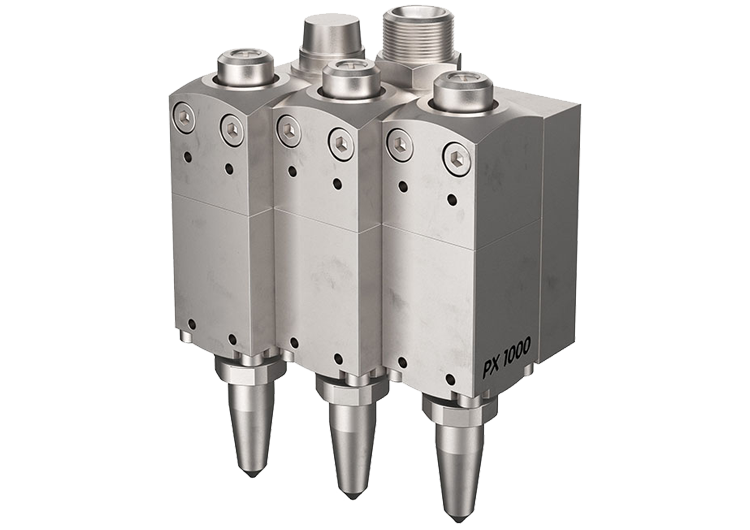

PX 1000 Multiple Head

PX 1000 Multiple head

- 4500 mPaS adhesive viscosity

- Perfect start up behavior

- Fast switching cycles 750 Hz

- Tailing-free application

Technical data

Maximum machine speed:
• 350 m/min – system with KP-6 adhesive delivery unit
• 450 m/min – system with KP-9 adhesive delivery unit

Adhesive application
• Up to 3 tracks

Monitoring sensors
• CS 1000, PGD 1000: Scanning frequency 10 kHz,
• minimum monitorable point size 1 x 1 mm
• Monitoring of up to three adhesive traces individually

CS 1000

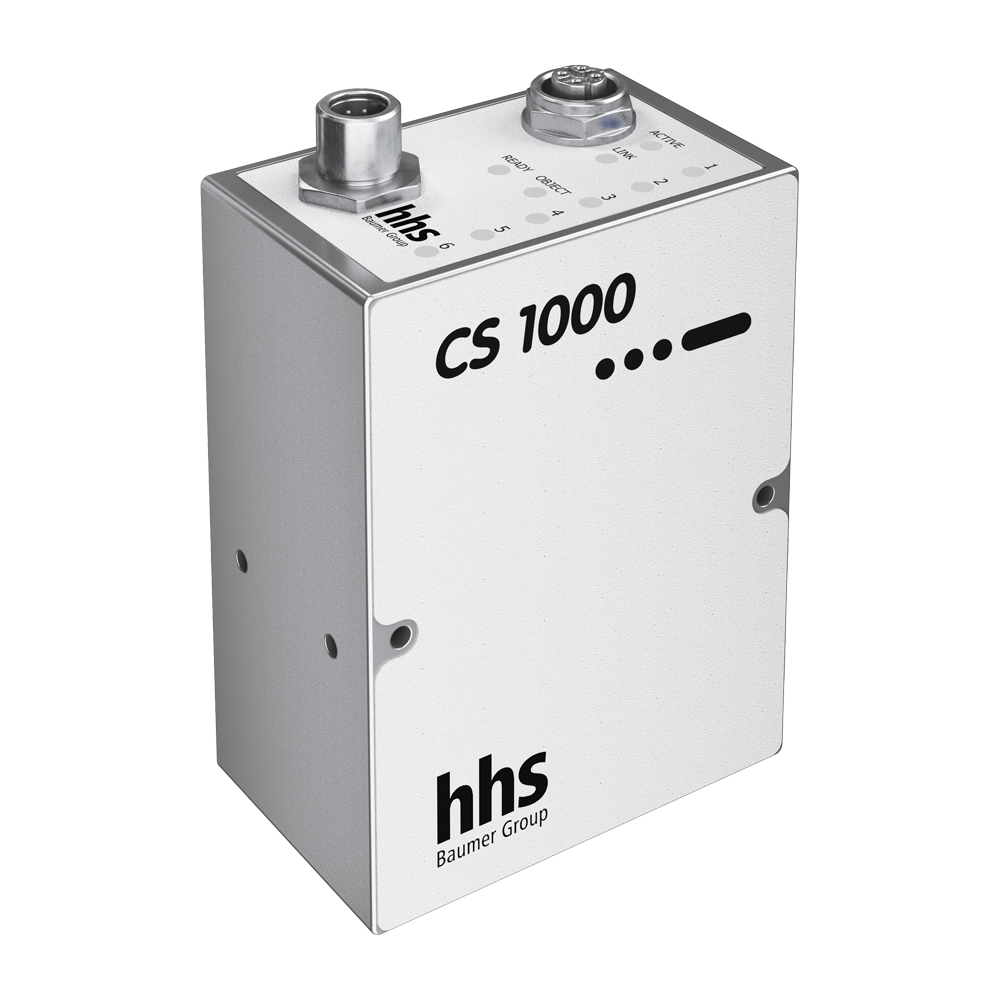

CS 1000 Detection sensor

Scanning frequency 10 kHz
Minimum monitorable point size 1 x 1 mm
Monitoring of up to three adhesive traces individually

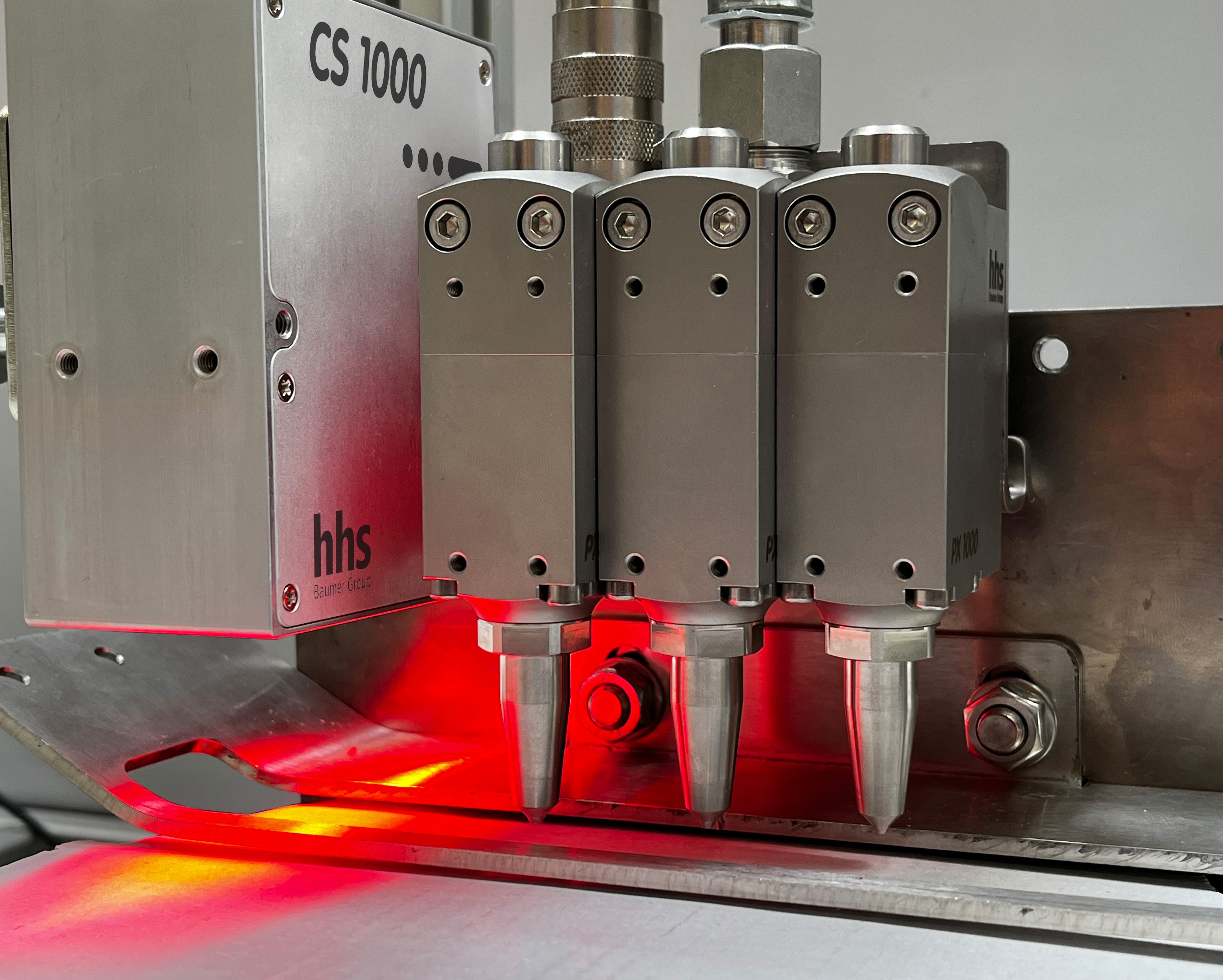

CS 1000 Detection sensor

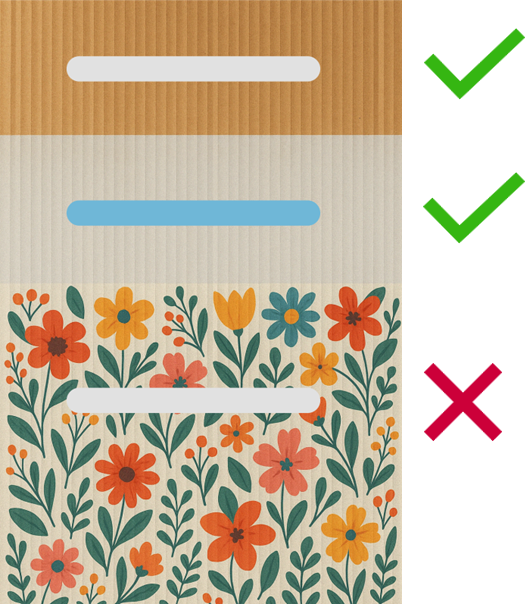

The CS 1000, checks adhesive traces optically. It requires a contrast between the adhesive and the substrate, such as white adhesive on brown cardboard or blue adhesive on light-colored materials. This effective solution is suitable for various applications, especially in e-commerce. The CS 1000 serves as a cost-effective alternative to capacitive sensors, ensuring high accuracy in detecting every adhesive trace.

Technical data

Maximum machine speed:
• 350 m/min – system with KP-6 adhesive delivery unit
• 450 m/min – system with KP-9 adhesive delivery unit

Adhesive application
• Up to 3 tracks

Monitoring sensors
• CS 1000, PGD 1000: Scanning frequency 10 kHz,
• minimum monitorable point size 1 x 1 mm
• Monitoring of up to three adhesive traces individually

PGD 1000

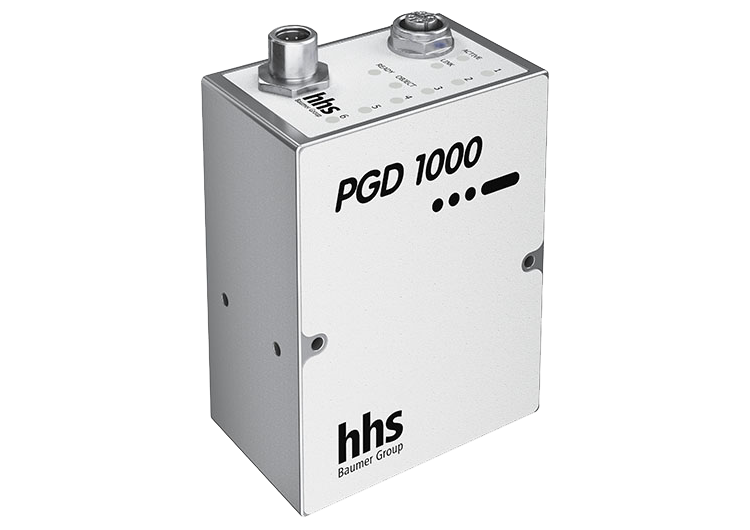

PGD 1000 Detection sensor

Sensor like a camera
Adhesive detection without brightener or additives
Detects adhesives on every surface

PGD 1000 Detection sensor

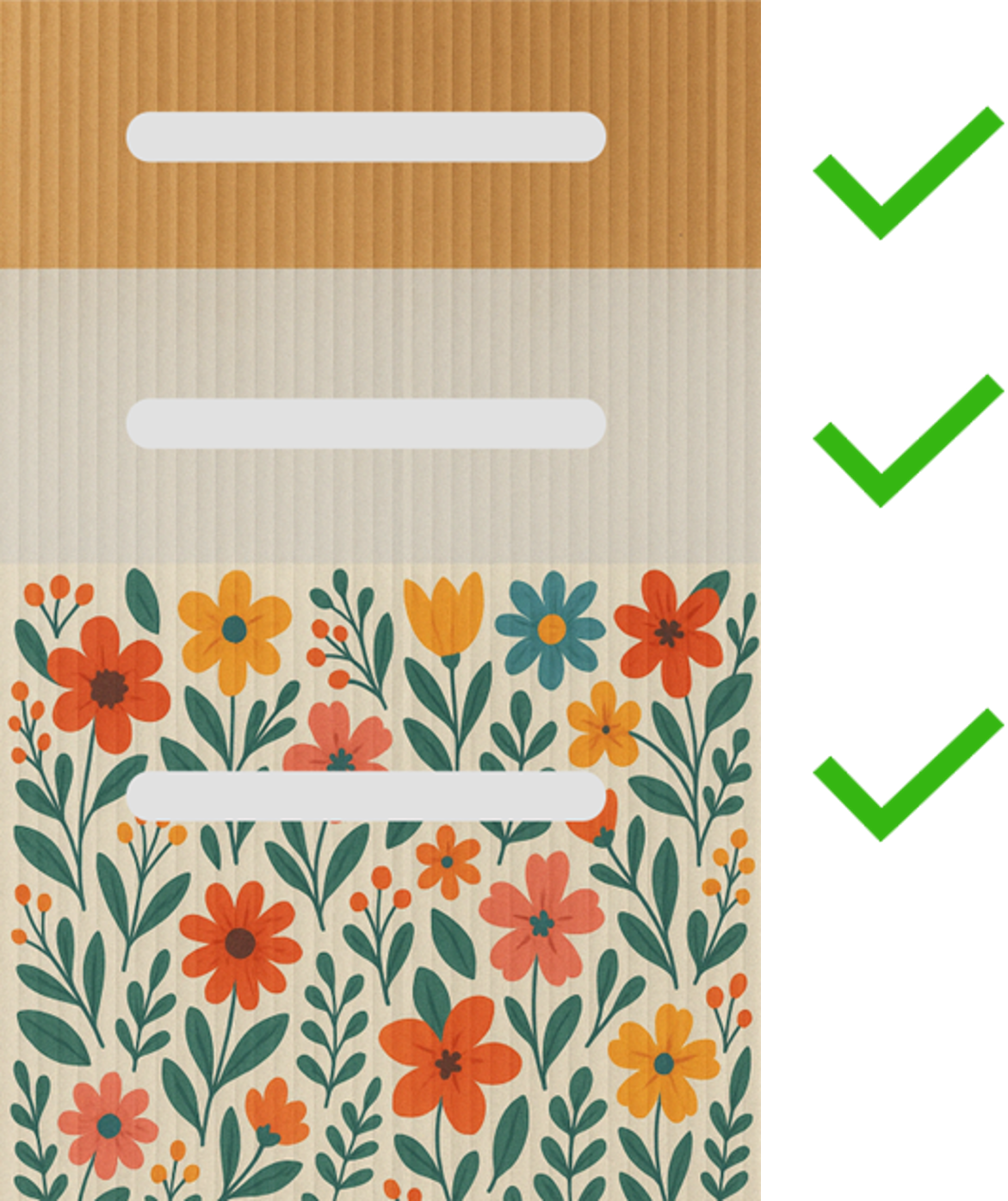

The PGD 1000, operates across specific spectral ranges, allowing it to detect adhesive irrespective of the background color, whether it be brown, white, or colored. This flexibility facilitates quick setup and precise control, even in challenging conditions.

Technical data

Maximum machine speed:
• 350 m/min – system with KP-6 adhesive delivery unit
• 450 m/min – system with KP-9 adhesive delivery unit

Adhesive application
• Up to 3 tracks

Monitoring sensors
• CS 1000, PGD 1000: Scanning frequency 10 kHz,
• minimum monitorable point size 1 x 1 mm
• Monitoring of up to three adhesive traces individually

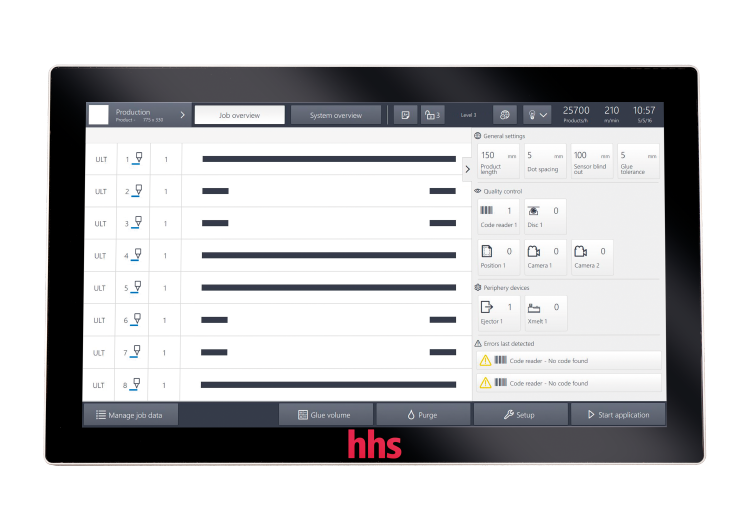

Xtend³

Xtend³

Modern user interface
Modular system
Glue save modus
Savings up to 60%
Different user level
Easy operation

Technical data

Maximum machine speed:
• 350 m/min – system with KP-6 adhesive delivery unit
• 450 m/min – system with KP-9 adhesive delivery unit

Adhesive application
• Up to 3 tracks

Monitoring sensors
• CS 1000, PGD 1000: Scanning frequency 10 kHz,
• minimum monitorable point size 1 x 1 mm
• Monitoring of up to three adhesive traces individually

CorrBox Solution Brochure-Download

For further information
