Cold glue pumps

Baumer hhs supplies you with tailored products for the application of cold glues and liquids.
Our products are used in folding carton production, corrugated board production, print finishing and many other applications. Baumer hhs is the partner of the internationally leading machine manufacturers and packaging producers.

DPP-8

Adhesive conveying in perfection

DPP-8 double piston pump
The precise electronic control of the two pistons enables the ideal pressure control of the adhesive at any production speed. A material pressure regulator is therefore not required and the adhesive is thus protected.

High-pressure pump for maximum production speeds
Networking with Xtend³ control unit
Intelligent communication
Error messages in the display

Download data sheet

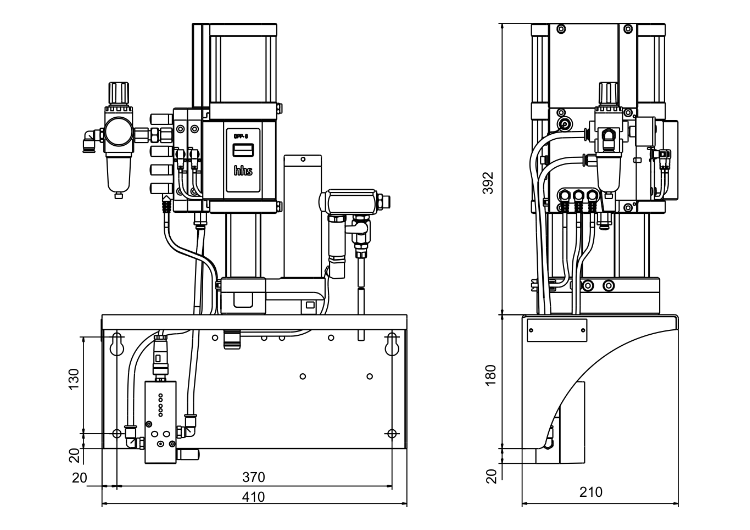

Technical Data

Specification	Value	Unit
Regulated output pressure max.	40	bar
Air inlet pressure	6-7	bar
Pressure ratio	8:1
Adhesive viscosity	6.000	mPaS
Max. delivery rate	2	L/min
Connected load	12	W
Weight	20,5	kg

DPP-4

Adhesive conveying in perfection

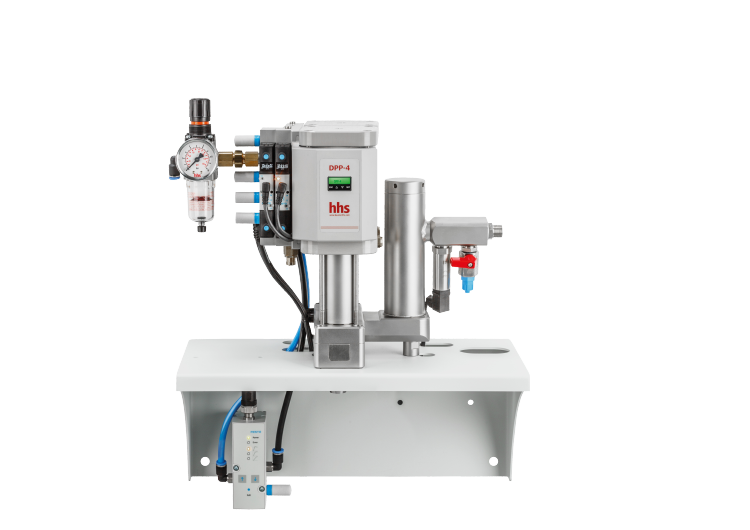

DPP-4 double piston pump
The precise electronic control of the two pistons enables the ideal pressure control of the adhesive at any production speed. A material pressure regulator is therefore not required and the adhesive is thus protected.

High-pressure pump for maximum production speeds
Networking with Xtend³ control unit
Intelligent communication
Error messages in the display

Download data sheet

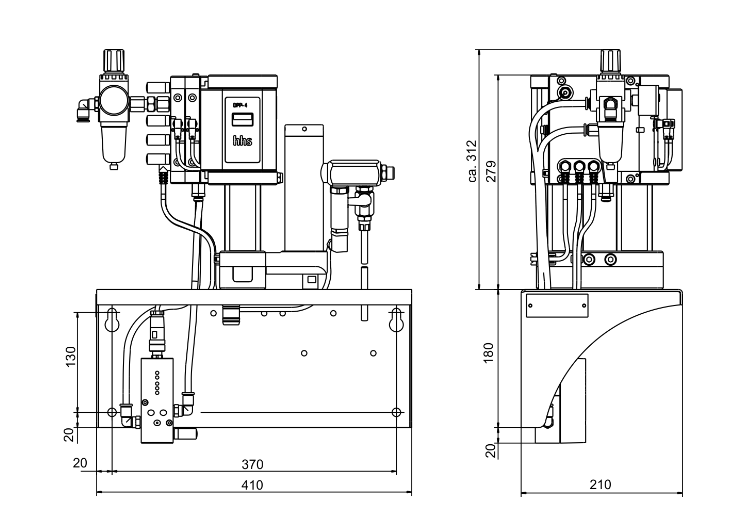

Technical Data

Specification	Value	Unit
Regulated output pressure max.	20	bar
Air inlet pressure	6-7	bar
Pressure ratio	4:1
Adhesive viscosity	6.000	mPaS
Max. delivery rate	2	L/min
Connected load	12	W
Weight	20,5	kg

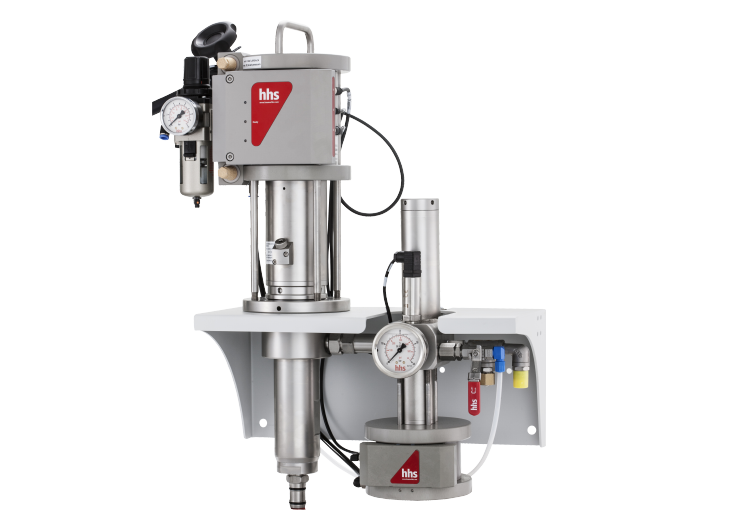

KPE-9

Robust and precise

Electronically controlled piston pump for maximum demands.

Conveying unit for medium to high viscosity materials.

Minimal maintenance
Uniform adhesive application
FDA approval

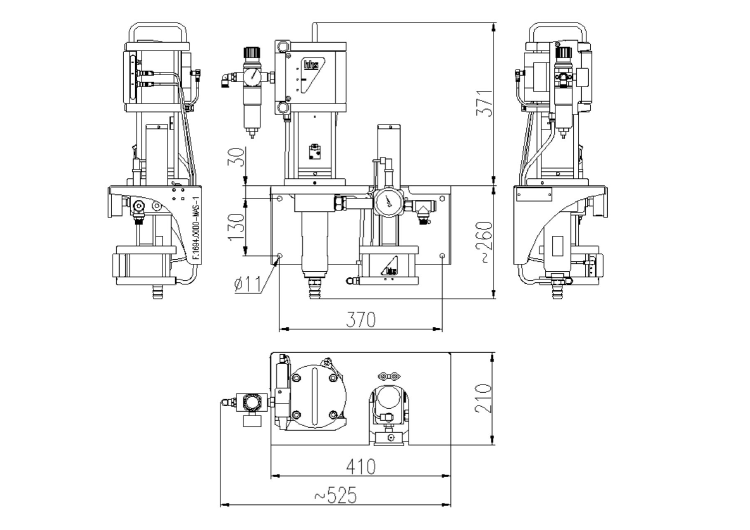

Technical Data

Specification	Value	Unit
Regulated output pressure max.	35	bar
Theoretically max. achievable outlet pressure at 6 bar air inlet pressure	54	bar
Compressed air connection	6-8	bar
Pressure ratio	9:1
Adhesive viscosity	10.000	mPaS
Max. delivery rate	2,5	L/min
Connected load	12	W
Weight	32	kg

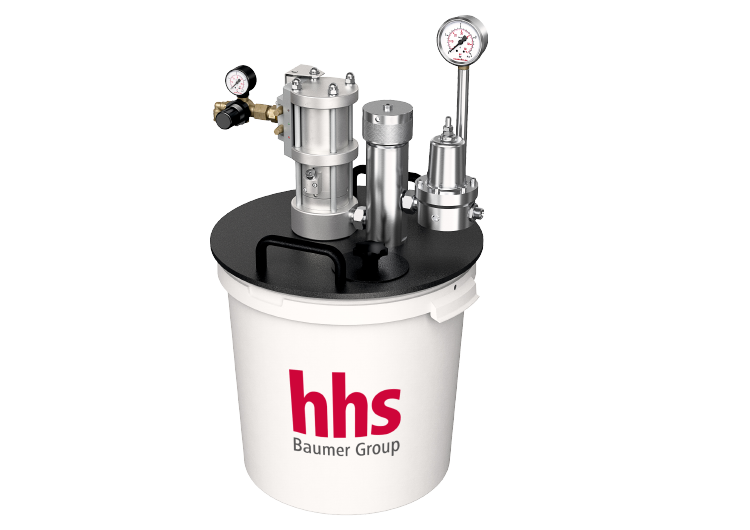

KPE-6

Reliable adhesive supply

Electronically controlled piston pump for low to medium viscosity materials.

Minimal maintenance
Uniform adhesive application
Up to 5.000 mPaS

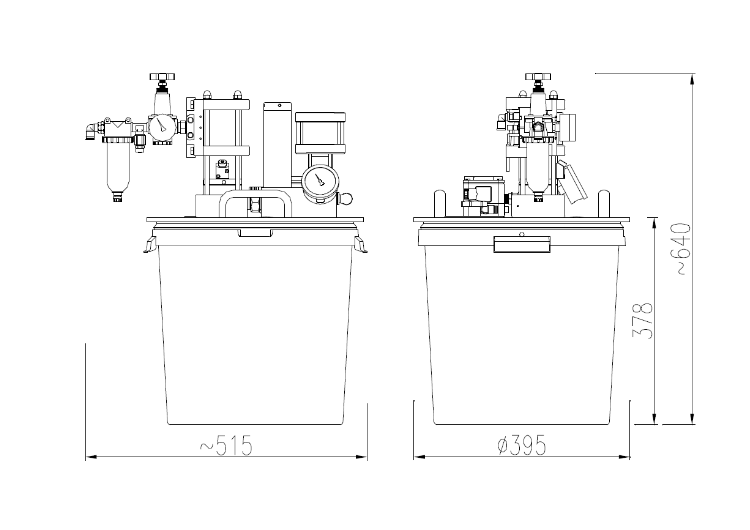

Technical Data

Specification	Value	Unit
Regulated output pressure max.	20	bar
Compressed air connection	6-7	bar
Pressure ratio	6:1
Adhesive viscosity	5.000	mPaS
Max. delivery rate	0,7	L/min
