Xact
Xcontrol, control units from Baumer hhs are the heart of all production machines. No matter whether it is adhesive application, monitoring or product tracking. With Xcontrol you always have everything in sight.
Baumer hhs is your partner in all applications.
Innovative and straightforward

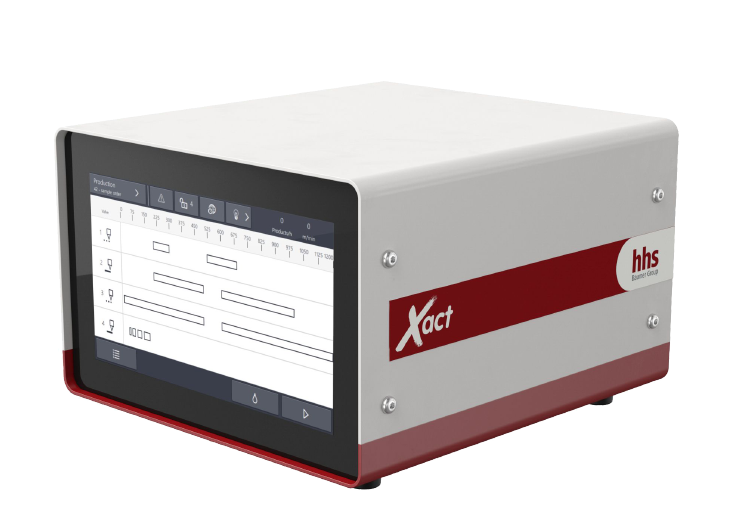

The Xact control unit is the ideal introduction to adhesive application control. The innovative operator guidance consistently continues the concept of Xtend³. Users will immediately find their way around.
The Xact has 4 channels and is therefore suitable for many applications in packaging production.
- 4 channels
- Easy programming
- Up to 300 m/min
- Adhesive application pattern with up to 8 sections
- Dot / line switching

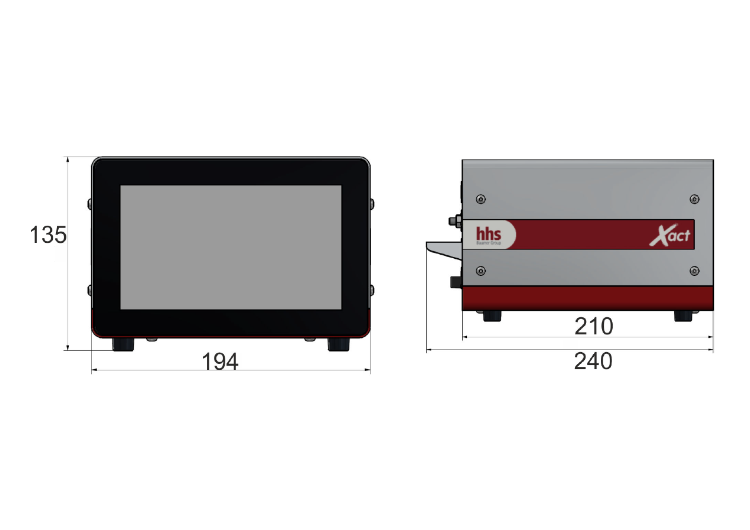

Technical data
| Specification | Value | Unit |
|---|---|---|
| Mains voltage, 1 NPE1 NPE | 115 ± 10 %/230 ± 10 % | V |
| Control voltage, signals | 24 | V |
| Control voltage, order valves | 48 | V |
| Current consumption at 115 V | 3 | A |
| Current consumption at 230 V | 1,5 | A |
| Protection class | 32 | IP |
| Machine speed max. | 300 | m/min |
| Ambient temperature | 10 - 40 | °C |
The entry-level system for corrugated board production
Simple in everything.
Simple programming of the gluing of flaps. Optionally with 2 or 3 glue tracks.
Save raw materials with the integrated glue saving mode. Simply switch to intermittent application and save up to 50%.
- Glue saving mode
- Dot / line switching
- Application storage for 99 sample applications
- Innovative operation
Technical data
| Specification | Value | Unit |
|---|---|---|
| Mains voltage, 1 NPE | 115 ± 10 %/230 ± 10 % | V |
| Control voltage, signals | 24 | V |
| Control voltage, order valves | 48 | V |
| Current consumption at 115 V | 3 | A |
| Current consumption at 230 V | 1,5 | A |
| Protection class | 32 | IP |
| Machine speed max. | 350 | m/min |
| Ambient temperature | 10 - 40 | °C |
SPS connection made simple
The easy way to reduce costs and emissions is to switch to dot application in packaging production. With the dot box, it is easy to convert incoming SPS signals into dot application.
Save more than 50% adhesive with every package. An investment that pays for itself in a short time.
- Dot application
- Easy integration
- More than 50% adhesive savings
- ROI less than 3 months
