Electropneumatic Application heads
Baumer hhs offers everything for the application and processing of hot melt adhesives. The systems and components are used in many industrial applications.
From energy-efficient melters to long-life electrical application heads, Baumer hhs is your one-stop partner.

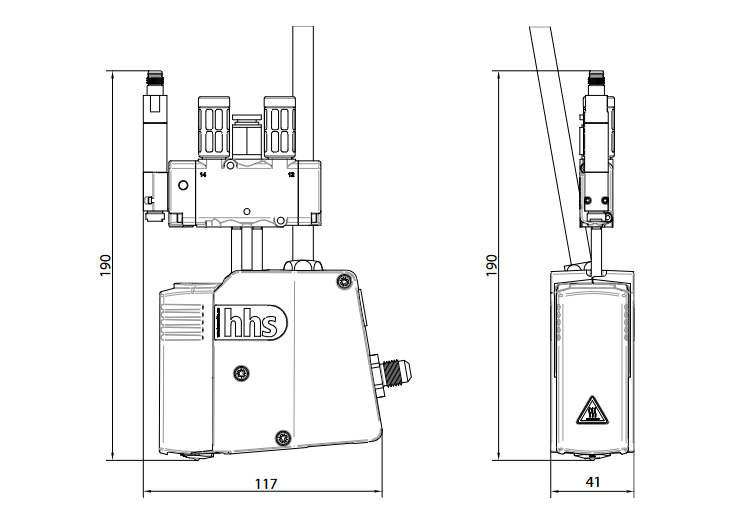

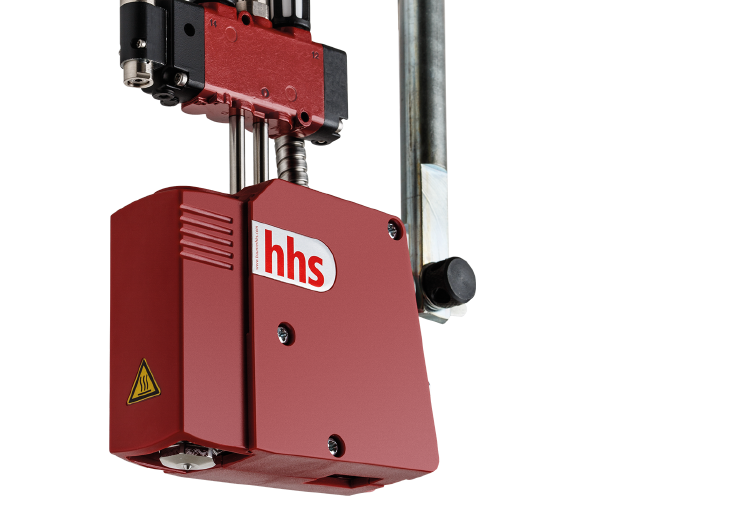

Electropneumatic head for bead and dot application
The aerto pro delivers maximum application quality, even with the most difficult adhesives. The powerful long-life module with innovative sealing technology convinces with perfect application at all speeds.
- Maximum flexibility in adhesive selection
- Long service life
- Perfect dot application
- Low maintenance costs
Technical data
| Specification | Value | Unit |
|---|---|---|
| Temperature range | 0-200 | °C |
| Temperature monitoring | Pt 100 | |
| Switching frequency* | 350**/280 or 21.000**/16.000 | Hz |
| Connection | 15 pole plug | |
| Hose connection | 1/2“ UNF | |
| Adhesive pressure | 80 | bar |
| Adhesive viscosity | max. 60.000 | mPa.s |
| Noise emission | 82 | dB*** |
* depending on nozzle size, adhesive and pressure** no continuous operation*** with sound insulation |

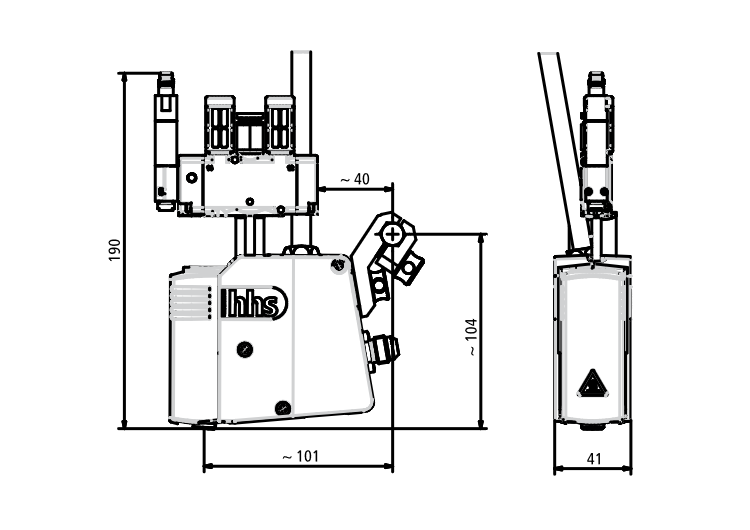

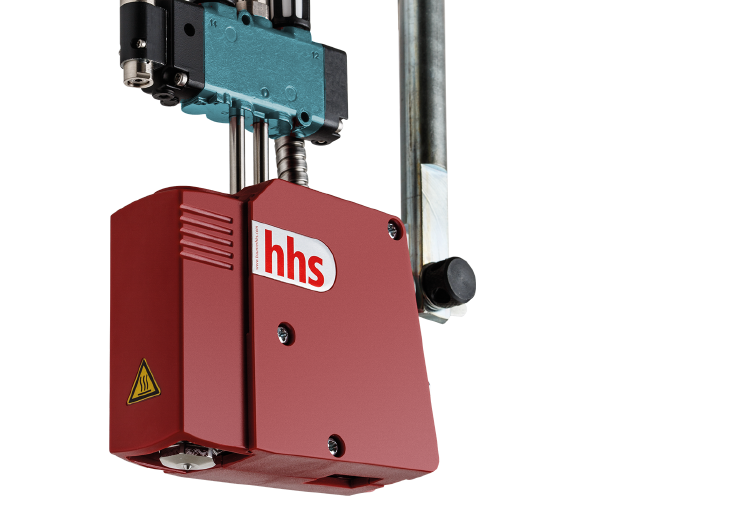

Powerhouse for end-of-line packaging
With the aerto evo, soiling of packaging machines due to thread pull and faulty gluing is history. The powerful head ensures clean application of dots and beads even in the most difficult installation situations. Safe and precise.
- Maximum safety with temperature cut-off
- Maximum flexibility in adhesive selection
- Simple control via SPS 24V
- Flexible for dot and line application
Technical data
| Specification | Value | Unit |
|---|---|---|
| Temperature range | 0-200 | °C |
| Temperature monitoring | Pt 100 | |
| Switching frequency* | 250 | Hz |
| Connection | 15 pole plug | |
| Hose connection | 1/2“ UNF | |
| Adhesive pressure | 80 | bar |
| Adhesive viscosity | max. 60.000 | mPa.s |
| Noise emission | 82 | db** |
* depending on nozzle size, adhesive and pressure ** no continuous operation*** with sound insulation |
Powerhouse for end-of-line packaging for use with third-party systems
With the aerto go you enjoy the same advantages as with our aerto evo, only here you have the possibility to use existing systems. Due to its compatibility, the aerto go is the perfect start into the technology of Baumer hhs.
- Maximum safety through temperature shut-off
- Highest flexibility in adhesive selection
- Simple control via PLC 24V
- Flexible for dot and line application
- Easy integration due to competition-compatible connections
Technical data
| Specification | Value | Unit |
|---|---|---|
| Temperature range | 0-200 | °C |
| Temperature monitoring | Ni 120 | |
| Switching frequency* | 250 | Hz |
| Hose connection | Stecker für den Betrieb an Fremdsystemen | |
| Adhesive pressure | 80 | bar |
| Adhesive viscosity | max.60.000 | mPa.s |
| Noise emission | 82 | dB** |
*Depending on nozzle size, adhesive and pressure **with sound insulation |

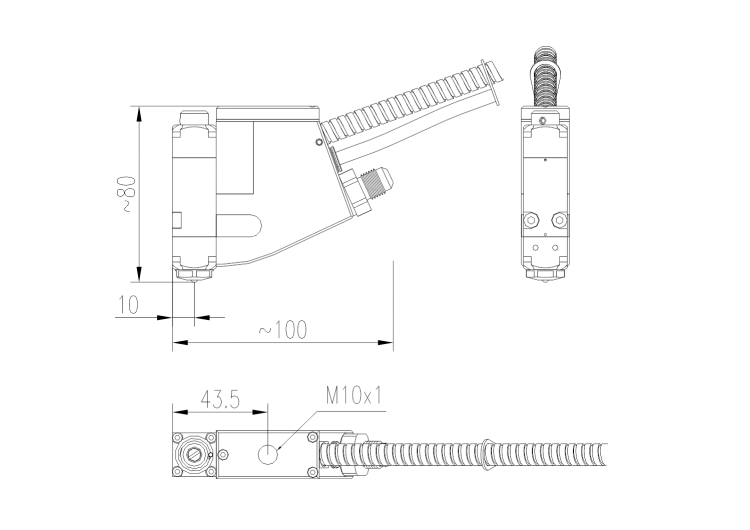

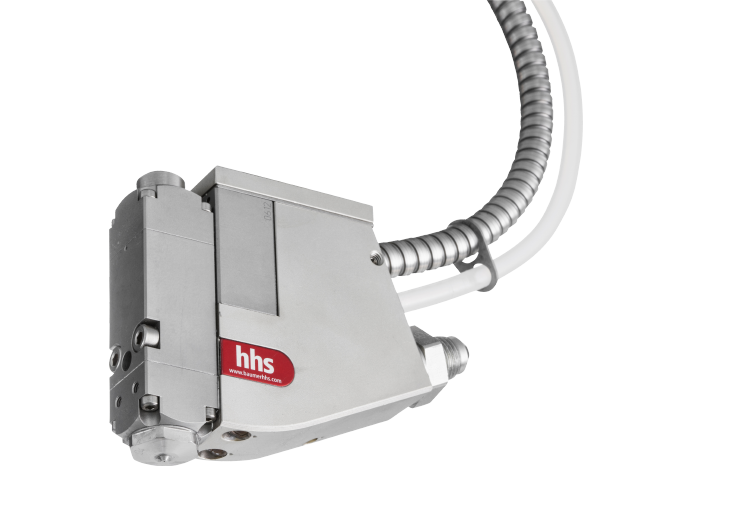

The compact application head
With its integrated pneumatic valve, the HP-500 impresses with its compact design. It can be integrated into the tightest installation spaces and is ideally suited for integration into robotic applications, among others.
- Small installation space
- Great flexibility in the choice of adhesive
- Wide range of applications
- Extremely quiet
Technical data
| Specification | Value | Unit |
|---|---|---|
| Temperature range | 0-200 | °C |
| Temperature monitoring | Pt 100 | |
| Switching frequency* | 150 | Hz |
| Connection | 9-pole AMP-Plugr | |
| Hose connection | 1/2" UNF | |
| Adhesive pressure | 80 | bar |
| Noise emission | 70 | dB |
| *Depending on nozzle size, adhesive and pressure |

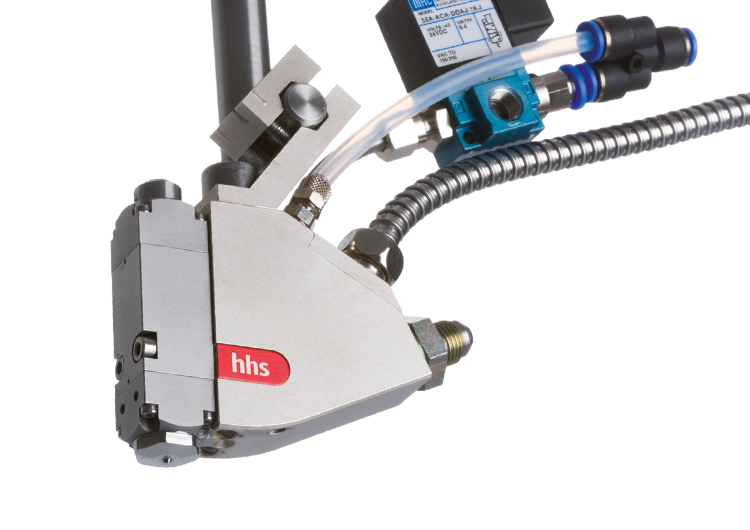

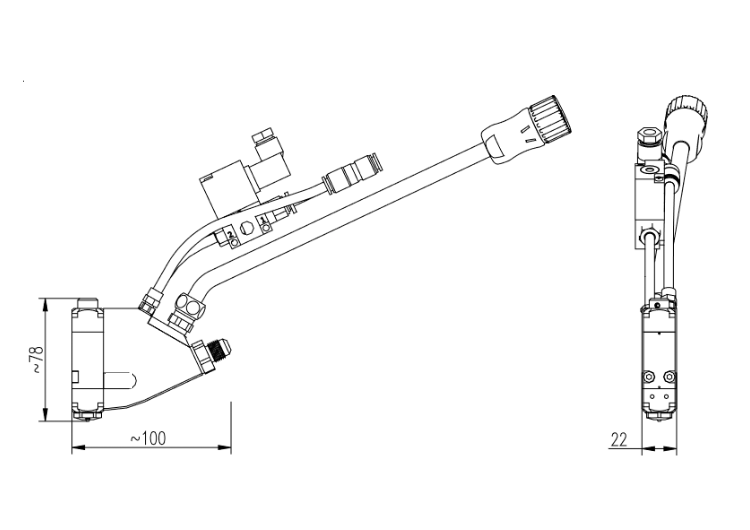

The universal head with power
With the HM-500, Baumer hhs provides an extremely powerful and flexible application head. The HM-500 is suitable for a wide range of applications in many industries.
- Special designs available
- Maximum flexibility
- Maximum flexibility in adhesive selection
- For dot and line application
Technical data
| Specification | Value | Unit |
|---|---|---|
| Temperature range | 0-200 | °C |
| Temperature monitoring | Pt 100 | |
| Switching frequency* | 150 | HZ |
| Connection | 15 pole plug | |
| Hose connection | 1/2“ UNF | |
| Adhesive pressure | 80 | bar |
| Adhesive viscosity | max. 60.000 | mPa.s |
| Noise emission | 75 | dB |
| *Depending on nozzle size, adhesive and pressure |
